BMP180 Pressure Sensor Breakout Discontinued RoHS

Specifications

Part Number	SEN-31001
Vdd Min (V)	1.8
Vdd Max (V)	3.6
Vddio Min (V)	1.62
Vddio Max (V)	3.6
Press Min (kPa)	30
Press Max (kPa)	110
Press Resolution (kPa/bit)	0.001
Press Resolution (bit)	19
T Resolution (C/bit)	0.1
T Resolution (bit)	16
Interface	I2C
RoHS	Yes

We're sorry. This product is discontinued and is no longer available.

Description

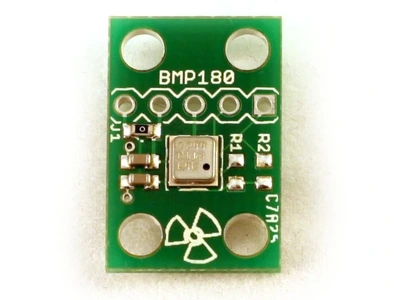

Breakout board for the BMP180 digital absolute pressure sensor with integrated temperature sensor. Measured pressure range is 300 to 1,100 hPa, resolving to elevations of -500m to 9,000m above sea level. This sensor provides very high accuracy and precision with a smaller footprint than its predecessor, the BMP085.

Features

Measures 300 to 1,100 hPa (-500m - 9,000m altitude)
I2C interface (pressure and temperature)
Wide supply voltage range: 1.8V - 3.6V (Vdd), 1.62V - 3.6V (Vddio)
Resolution of 0.01 hPa (pressure) / 0.1 degrees C (temperature)
Full accuracy from 0 - 65 degrees C
Tiny 3.6mm x 3.8mm x 0.93mm package (IC)
16-19-bit pressure data / 16-bit temperature data (selectable resolution)
Mounting holes for 4-40 sized screws
Connections are spaced for 0.1" pin header
Designed, manufactured, tested and shipped from the USA

Related Files

BMP180_BaroPressSnsr_Breakout.pdf	Schematic
BST_BMP180_DS000_07.pdf	BMP180 Datasheet

Tech Articles and External Links

BMP180 Example Code	Code example from the Bosch website
Bosch MEMS Pressure Sensors	Manufacturer's product page
