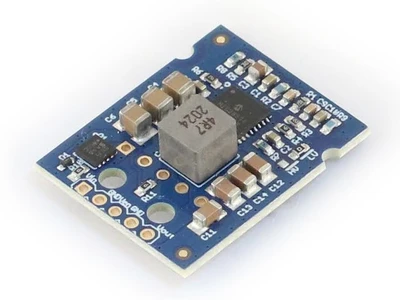

8V, 5A, DC/DC Buck Switch Mode Power Supply Module RoHS
Specifications
Part Number |
PWR-70001-8V0 |
|---|---|
UPC |
655469070783 |
Vdd Min (V) |
10.0 |
Vdd Max (V) |
75 |
RoHS |
Yes |
Pin Spacing (mm) |
2.5 |
Length (mm) |
30.8 |
Width (mm) |
24.4 |
Height (mm) |
7.5 |
Vout (V) |
8.0 |
Iout Min (A) |
0 |
Iout Max (A) |
5.0 |
| Price (ea) | Quantity |
| $19.95 | 1-9 |
| $17.95 | 10-99 |
| $15.99 | 100+ |
Contact for quote
Description
The PWR-70001 is a compact, high efficiency power supply module. It accepts any supply voltage below 75 volts, all the way down to Vout plus 2 volts. Four output voltages are available: 3.3, 5.0, 8.0, and 12.0V and each variant is available with and without a connector. Other output voltages and form factors (land grid array, etc) are available. Contact Customer Service to place a custom order.
The PWR-70001 is most efficient when the load current is below 3 Amps and the supply voltage is near the output voltage. Under ideal conditions the PWR-70001 is 93% efficient. Under peak load and maximum input voltage the PWR-70001 is still 76% efficient. Extended operation at peak output current requires a heat sink (not included).
This module is an excellent choice for robotics, automotive, and other battery powered projects.
Features
- Optional Molex Micro-Fit 3.0 connector
- Buck topology, switch mode power supply
- Up to 93% efficient
- Wide supply voltage range. Up to 75V input voltage
- Excellent transient load response
- Compact design. Rounded notches for 4-40 screws
- Short-circuit and overload protection
- Volume pricing and custom assembly available. Contact Customer Service to place a custom order.
- Designed, manufactured, tested and shipped from the USA
