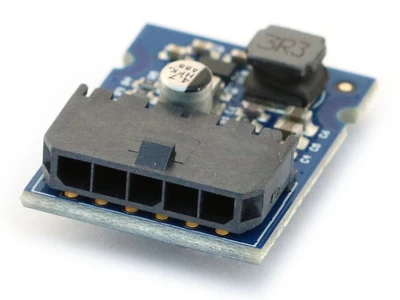

12.0V, 3A, DC/DC Buck Switch Mode Power Supply Module with Connector (12.0V; With Connector) RoHS

Specifications

Part Number
PWR-70002-12V0WC
UPC
655469085411
HTS Code
8504407001
ECCN
EAR99
Country of Origin
USA
Vdd Min
14.0 V
Vdd Max
36 V
RoHS
Yes
Pin Spacing
2.5 mm
Length
28.0 mm
Width
20.0 mm
Height
8.0 mm
Vout
12.0 V
Iout Min
0 A
Iout Max
3.0 A
MPN: PWR-70002-12V0WC
3 In stock

Price (ea) Quantity
$11.95 1-9
$10.88 10-99
$9.59 100+
Higher Qty:
Contact for quote



Description

The PWR-70002 is a compact, high efficiency power supply module. It accepts any supply voltage below 36 volts, all the way down to Vout plus 2 volts. Four output voltages are available: 3.3, 5.0, 8.0, and 12.0V and each variant is available with and without a connector. Other output voltages and form factors (land grid array, etc) are available. Contact Customer Service to place a custom order.

The PWR-70002 is most efficient when the supply voltage is near the output voltage. Under ideal conditions the PWR-70002 is 96% efficient. Under peak load and maximum input voltage the PWR-70002 is still 78% efficient. Extended operation at peak output current requires a heat sink (not included).

This module is an excellent choice for robotics, automotive, and other battery powered projects.

Features

  • Includes Molex Micro-Fit 3.0 connector
  • Buck topology, switch mode power supply
  • Up to 96% efficient
  • Wide supply voltage range. Up to 36V input voltage
  • Excellent transient load response
  • Compact design. Rounded notches for 4-40 screws
  • Short-circuit and overload protection
  • Volume pricing and custom assembly available. Contact Customer Service to place a custom order.
  • Designed, manufactured, tested and shipped from the USA
