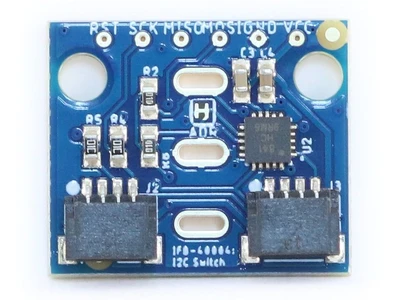

The I2C switch board enables a toggle switch to be interfaced with the Qwiic connect system. It utilizes an Atmel ATtiny841 to process information from the switch, which makes it an excellent low-power device. From seasoned electronics hobbyists to those just getting started, the I2C switch board is right for you!

Wiring simplification: The Qwiic connect system reduces wiring complexity. A toggle switch would use 2 wires, compared to the single cable needed to use the I2C switch board.

Software simplification: Playing with Fusion's custom Arduino libraries makes the implementation of the I2C switch board very fluid. The switch information can be obtained in just a few lines of code, which not only speeds up the development process but also increases code legibility.

Excellent documentation: Check out PwFusion's GitHub pages for comprehensive product documentation! From Arduino libraries to example projects, there is plenty of information to help you level up your projects!

Open Source: IFB-40004 is open source. PCB design files and firmware can be found on the below GitHub pages. If you would like to make changes to the firmware on the switch board, instructions are included for this process.

Features

• Dimensions: 17 x 20 mm
• M3 mounting holes for secure attachment
• Qwiic Connect System compatible
• Dual Qwiic connectors for daisy chaining
• Supply voltage: 3.3V (through Qwiic connector)
• Up to 2 unique addresses selectable by cuttable jumpers
• I2C pullup resistors can be disabled by cuttable jumpers
• Detects toggle switch state
• Open source
• Designed, manufactured, tested, and shipped from the USA
