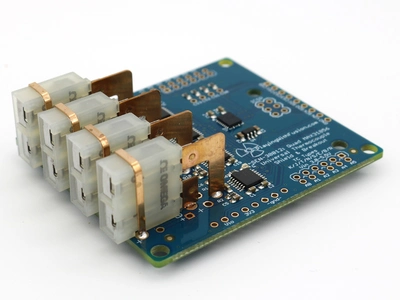

4-Channel J-Type Thermocouple MAX31856 SPI Digital Interface Shield RoHS
Download DatasheetSpecifications
Part Number |
SEN-30012-J |
|---|---|
UPC |
655469407794 |
Vdd Min (V) |
3.3 |
Vdd Max (V) |
5.5 |
Tmeas Min (C) |
-210 |
Tmeas Max (C) |
1200 |
T Resolution (C/bit) |
0.008 |
T Resolution (bit) |
19 |
Interface |
SPI |
RoHS |
Yes |
T Channels |
4 |
Length (mm) |
62 |
Width (mm) |
53.7 |
Height (mm) |
20 |
Type |
J |
| Price (ea) | Quantity |
| $87.95 | 1-9 |
| $79.95 | 10-99 |
| $74.65 | 100+ |
Contact for quote
Description
Quad channel breakout board for the MAX31856 universal digital thermocouple interface IC. This is an exciting update of the MAX31855, with improvements in resolution (19 vs 14 bits), on-board temperature reference (6 vs 4 bits), and compensation (fully compensated vs nonlinear correction required). The MAX31856 is interfaced via 4-wire SPI with options for interrupt triggering. An LDO and a high-speed level shifter are included on ALL device pins to allow interfacing with microcontroller devices between 3.3V and 5V (all Arduinos, Raspberry PI, etc) without sacrificing device performance in any operating condition.
Flexible interface options. Arduino Uno compatible footprint or use the additional 0.1" 1x9 pin header. Includes four mounting holes for standoffs and 4-40 screws. Note, pin headers are not included, but are avaliable here.
Additional thermocouple connector options are available. Contact Customer Service to learn more.
Features
- MAX31856 universal type Thermocouple-to-digital converter
- Measures full range for B, E, J, K, N, R, S and T thermocouple types
- 4-wire SPI interface
- Supply voltage range: 3.3V - 5.0V
- On-board LDO supplies the MAX31856
- High-speed level translator on ALL digital pins
- All Arduino, RPi and PIC devices supported
- Detects shorts to GND or Vcc
- Detects open thermocouple
- Volume pricing and custom assembly available. Contact Customer Service to place a custom order.
- 0.1" spacing, 14-pin header with all functions routed, including SPI, CS and Data Ready funcions
- 4-40 sized holes for easy board mounting
- Designed, manufactured, tested and shipped from the USA
Applications
- Automotive data acquisition (exhaust, coolant, brakes, etc)
- Industrial instrumentation
- Oven temperature measurements and control
- Home brew setups
- Other hobby projects
Flexible interface options. Arduino Uno compatible footprint or use the additional 0.1" 1x9 pin header. Includes four mounting holes for standoffs and 4-40 screws. Note, pin headers are not included, but are avaliable here.
Additional thermocouple connector options are available. Contact Customer Service to learn more.
Features
- MAX31856 universal type Thermocouple-to-digital converter
- Measures full range for B, E, J, K, N, R, S and T thermocouple types
- 4-wire SPI interface
- Supply voltage range: 3.3V - 5.0V
- On-board LDO supplies the MAX31856
- High-speed level translator on ALL digital pins
- All Arduino, RPi and PIC devices supported
- Detects shorts to GND or Vcc
- Detects open thermocouple
- Volume pricing and custom assembly available. Contact Customer Service to place a custom order.
- 0.1" spacing, 9-pin header with all functions routed, including SPI, CS and Data Ready functions
- 4-40 sized holes for easy board mounting
- Designed, manufactured, tested and shipped from the USA
Applications
- Automotive data acquisition (exhaust, coolant, brakes, etc)
- Industrial instrumentation
- Oven temperature measurements and control
- Home brew setups
- Other hobby projects
Related Files
| max31856.pdf | MAX31856 Datasheet |
| sen30012_3d_model.step | 3D Model |
| sen30012_datasheet_r01.pdf | Product Datasheet |
| sen30012_drawing.pdf | Mounting Dimensions |
Tech Articles and External Links
| Analog Devices MAX31856 | Manufacturer's product page |
| GitHub: PWFusion_MAX31856 | Maxim MAX31856 Thermocouple to Digital Converter Arduino Library |
