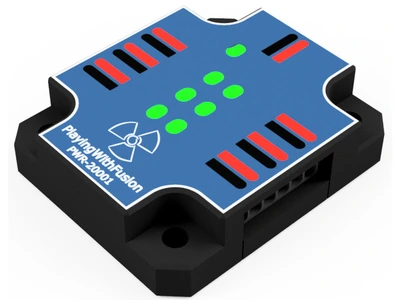

PTC Fused Power Distribution Module RoHS

Sensors can be delicate devices. Protect your sensors from excess current with Playing With Fusion’s PTC fused sensor power distribution board!

Resettable Fuses: PWR-20001 includes Positive Temperature Coefficient (PTC) fuses, a resettable fuse ideal for protecting against overcurrent faults.

Small Form Factor: PWR-20001's small size makes it mountable virtually anywhere on your build. Wiring to robot extremities becomes simplified, reducing failure points.

Easy to Use: Clear labeling shows the polarity of the connectors, and LED indicators display the status of each channel for quick troubleshooting.

Features

• x1 spring clamp power input
• x6 spring clamp power outputs
• Channel status indicator LEDs
• Max current: 3A continuous
• 500 mA PTC fuses
• Mounting Dimensions: 1.25” x 1”
• Designed, manufactured, tested, and shipped from the USA.

Applications

• Robotic competitions (FRC, FTC, VEX, etc.)
• RC projects (cars, trucks, boats, etc.)
• Other hobby projects
