FSAE Energy Meter Receptacle RoHS

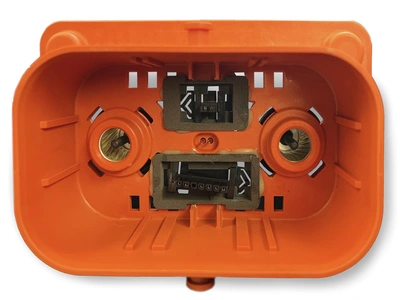

FSAE-20002 FSAE Energy Meter Receptacle Image
FSAE-20002 FSAE Energy Meter Receptacle Thumbnail FSAE-20002 FSAE Energy Meter Receptacle Thumbnail FSAE-20002 FSAE Energy Meter Receptacle Thumbnail

Specifications

Part Number
FSAE-20002
HTS Code
8536908585
ECCN
EAR99
Country of Origin
USA
Length
135 mm
Width
93 mm
Height
91 mm
MPN: FSAE-20002
2 In stock
Price (ea) Quantity
$314.95 1+
Higher Qty:
Contact for quote

Description

Formula SAE Electric Energy Meter Receptacle, required for all competition vehicles. Based on the Amphenol MSDXLF000F mechanical service disconnect base. The Energy Meter Receptacle includes addition electrical connections to support the competition energy meter.

An Amphenol MSDXLM000 mechanical service disconnect (not included) is required to bridge the tractive system contacts when the competition energy meter is not present. The MSDXLM000 is available for purchase through other suppliers.

Includes:

  • Modified Amphenol MSDXLF000F base
  • 12” unterminated pigtail for low voltage connections
