Specifications
Part Number |
SEN-30002-J |
|---|---|
Vdd Min (V) |
3.0 |
Vdd Max (V) |
3.6 |
Tmeas Min (C) |
-210 |
Tmeas Max (C) |
1200 |
T Resolution (C/bit) |
0.25 |
T Resolution (bit) |
14 |
Interface |
SPI |
RoHS |
Yes |
T Channels |
4 |
Home > Product Categories > Discontinued > MAX31855 J-Type Thermocouple Sensor Breakout (4ch)

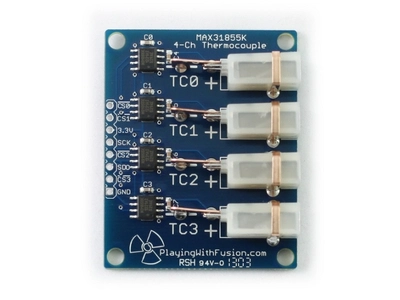

MAX31855 J-Type Thermocouple Sensor Breakout (4ch) Discontinued
 |
 |
 |
 |
 |
|
 |
 |
|
We're sorry. This product is discontinued and is no longer available
Description
This product is discontinued will no longer be available once we sell out. It has been replaced by the SEN-30003-JBreakout board for the MAX31855J digital thermocouple interface IC. Measured temperature range is -210C-1200C with known thermal characteristics and output resolution of 0.25C. This sensor supports a larger operating range (specifically in the negative range) than its predecessors, the MAX6674 and MAX6675, though it is not pin-pin compatible. This board is interfaced with a 0.1" 1x8 pin header, has four vertical mini thermocouple connectors and four mounting holes for standoffs and 4-40 screws.
Features
- Measures -210C-1200C (extended range)
- 14-bit SPI interface
- Supply voltage range: 3.0V - 3.6V
- Detects shorts to GND or Vcc
- Detects open thermocouple
- Other versions available (K, J, N, T and E standard). Contact Customer Service to place a custom order.
- Mounting holes for 4-40 sized screws
- Connections are spaced for 0.1" pin header
- Designed, manufactured, tested and shipped from the USA
Related Files
| max31855.pdf | MAX31855 Datasheet |
| sen30002_drawing.pdf | Mounting Dimensions |
Tech Articles and External Links
| MAX31855K to USB Adapter | Interface the Playing With Fusion MAX31855K-4CH thermocouple breakout to an MSP430F16x or 4x microcontroller |
| Analog Devices MAX31855 | Manufacturer's product page |
| GitHub: PWFusion_MAX31855_Tcorrection | Maxim MAX31855 Thermocouple to Digital Converter Arduino Library with Temperature Correction Code |
