MAX31855 T-Type Thermocouple Sensor Breakout (4ch) Discontinued RoHS

Specifications

Part Number	SEN-30002-T
Vdd Min (V)	3.0
Vdd Max (V)	3.6
Tmeas Min (C)	-270
Tmeas Max (C)	400
T Resolution (C/bit)	0.25
T Resolution (bit)	14
Interface	SPI
RoHS	Yes
T Channels	4

We're sorry. This product is discontinued and is no longer available.

Description

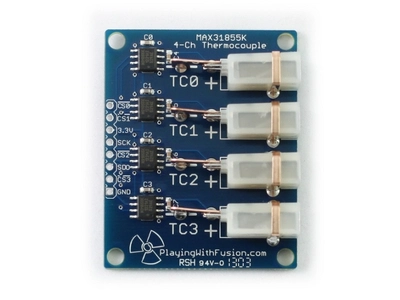

Breakout board for the MAX31855T digital thermocouple interface IC. Measured temperature range is -270C-400C with known thermal characteristics and output resolution of 0.25C. This sensor supports a larger operating range (specifically in the negative range) than its predecessors, the MAX6674 and MAX6675, though it is not pin-pin compatible. This board is interfaced with a 0.1" 1x8 pin header, has four vertical mini thermocouple connectors and four mounting holes for standoffs and 4-40 screws.

Features

Measures -270C-400C (extended range)
14-bit SPI interface
Supply voltage range: 3.0V - 3.6V
Detects shorts to GND or Vcc
Detects open thermocouple
Other versions available (K, J, N, T and E standard). Contact Customer Service to place a custom order.
Mounting holes for 4-40 sized screws
Connections are spaced for 0.1" pin header
Designed, manufactured, tested and shipped from the USA

Related Files

max31855.pdf	MAX31855 Datasheet
sen30002_drawing.pdf	Mounting Dimensions

Tech Articles and External Links

MAX31855K to USB Adapter	Interface the Playing With Fusion MAX31855K-4CH thermocouple breakout to an MSP430F16x or 4x microcontroller
Analog Devices MAX31855	Manufacturer's product page
GitHub: PWFusion_MAX31855_Tcorrection	Maxim MAX31855 Thermocouple to Digital Converter Arduino Library with Temperature Correction Code
