Digital Lightning Sensor Tester Arduino Shield for AS3935 RoHS
Specifications
Part Number |
SEN-39002 |
|---|---|
UPC |
655469374140 |
Description

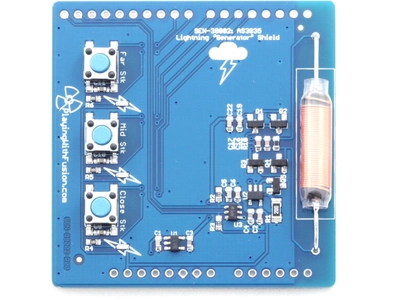

Arduino shield, ideal for AS3935 lightning sensor development. The lightning "emulator" generates a RF signal that mimics lightning strikes. This board is in an Arduino Uno form factor, and only uses GPIO and I2C, so can be stacked on many form factors (developed on an Uno and Mega).
Example code can be found on our Github page (I2C), Github page (SPI) and Github page (emulator).
Features
- Can be configured to simulate close, medium and far strikes
- Effective range is ~5-15cm from emulator antenna to sensor antenna
- Arduino form factor and example code makes it easy to install and use
- Three pushbuttons with LED indicators to indicate function and status
- Male straight header included, not installed
Videos
Explore the theory of operation as well as some of the quirks of the AMS AS3935 lightning sensor at the heart of the Playing With Fusion SEN-39003 breakout boards
Tech Articles and External Links
| AS3935 Lightning Sensor Quick Start Guide | Test the response of the AS3935 digital lightning sensor with the digital lightning sensor tester. |
| GitHub: PWFusion_Lightning_Emulator | Arduino Library for Lightning Emulator |
