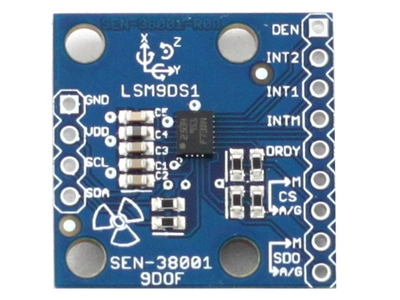

9-DOF Accelerometer, Gyro, Magnetometer breakout with SPI and I2C Interface RoHS

The LSM9DS1 is a highly configurable, flexible and precise motion sensing solution from ST Microelectronics - the latest in a wide-ranging inertial product line. It integrates a 3-axis accelerometer, 3-axis gyroscope and 3-axis magnetometer into a single IC , giving you a full nine degrees of freedom (9-DOF) in a tiny 3mm x 3.5mm package. Even with support components, square mounting pattern and connection breakouts for both SPI and I2C, this board is barely the size of a quarter.

Whether you are working with a sumo-bot, quadcoptor or FIRST Robotics robot, the configurability and precision of this unit are set to impress. Check out the specs below.

Features

• 3 acceleration, 3 angular rate and 3 magnetic field channels
• highly flexible configuration options
• ±2 / ±4 / ±8 / ±16 g (acceleration)
• ±4 / ±8 / ±12 / ±16 gauss (magnetic field)
• ±245 / ±500 / ±2000 DPS (angular rate)
• SPI and I2C interfacing
• Address configurability - connect multiple ICs on the same bus
• 3.3V operating voltage
• Flexible low power modes
• 0.9" X 0.9" board footprint
• 4 X 0.13" (4-40 sized) mounting holes - solid, wide mounting pattern for precision mounting
• This is an export-controlled device. Shipping outside the US will take several days to get proper documentation
