Sensirion SHT31-DIS-B Humidity and Temperature Sensor Breakout With Filter Discontinued RoHS

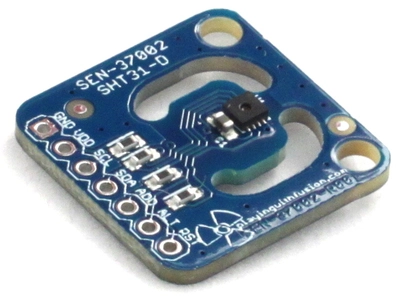

SEN-37002-F Sensirion SHT31-DIS-B Humidity and Temperature Sensor Breakout With Filter Image

Specifications

Part Number	SEN-37002-F
UPC	655469368903
Vdd Min (V)	2.4
Vdd Max (V)	5.5
Tmeas Min (C)	-40
Tmeas Max (C)	125
T Resolution (C/bit)	0.003
T Resolution (bit)	16
Interface	I2C
RoHS	Yes
Pin Spacing (mm)	2.54
Length (mm)	22
Width (mm)	22

Description

The SEN-37003 is a direct replacement and may includes Qwiic compatible I2C connectors.

Breakout board for the Sensirion SHT31-DIS-F with a built-in permeable membrane filter. This sensor is an extremely accurate digital (I2C interface) temperature and humidity sensing device, with +/-0.2°C temperature and +/-2% humidity accuracy typical. These specs far exceed the accuracy of ICs that came before it, including the HTU2x and SHT1x series, and improves upon the success of the SHT2x that came before it. In addition, the SHT31-DIS-B has a wide input voltage range of 2.4V-5.5V and includes temperature isolation and airflow cutouts as recommended for the optimal operation. Finally, in the case of environmental changes that could cause light condensation, the SHT31-DIS-B has a built-in heater to burn off any condensate.

This breakout includes a filter membrane to protect against environmental factors such as dust, water immersion and other particle ingress. This makes it perfect for harsher environments in which most other humidity sensors would fail.

As always, we have example code libraries available for this IC (Arduino platform), which can be found on our Github page (See Link Below)

Features

16-bit absolute temperature sensing from -40°C to 125°C
16-bit humidity sensing from 0-100% humidity in ambient temperatures from 5°C to 60°C
I2C interface, address 0x45
Wide supply voltage range: 2.4V – 5.5V
Board dimensions: 0.85" x 0.85"
2 Mounting holes for 4-40 sized screws
7-pin connection spaced for 0.1” pin header
Designed, manufactured, tested and shipped from the USA

sen37002_drawing.jpg	Mounting Dimensions
SHT31-DIS-F.pdf	SHT32-DIS Datasheet

GitHub: PWFusion_SHT3X	Sensirion SHT31 Precision Digital Temperature and Humidity Sensor Arduino Library.
Sensirion SHT31-DIS	Manufacturer's product page
