TMD37003 RGB Color and Proximity Sensor I2C Digital Interface RoHS

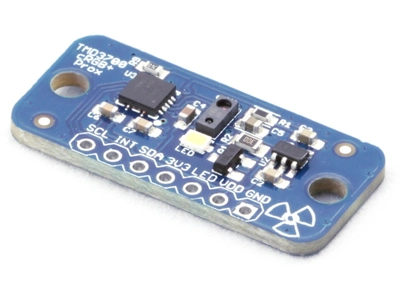

Fully integrated carrier board designed to get the most out of the TMD37003 cRGB (color with IR compensation) and Proximity Sensor from AMS. This means that the board includes a 1.8V-5V input range LDO and high-speed signal voltage translation on all IO pins. In addition, we've added a high output white LED that is tuned to the light temperature range of the TMD37003 IC. This makes sensing color of close-proximity objects possible, such as in robotic color sorting operations. As on many of our boards, we've included 4-40 sized mounting holes to make installation easy. The IC functions are interfaced via a 0.1" header, which includes power (Vdd and GND), I2C interface (again, fully translated) and a 3.3V input to power the proximity (IR) LED. The on-board LED is turned on with a logic 'HIGH' applied to the LED pin and is powered with Vdd.

Check out our Github page (see below) for example Arduino sketches and libraries, available for free as always.

Features:

• Color temperature appropriate, high brightness white LED
• Perfect for close-object color identification applications
• Proximity sensing via built-in IR LED
• Wide range, high resolution Ambient Light Sensing capability (200mLUX to 60 kLUX)
• Built-in UV and IR filtering on color channels plus 'clear' input
• I2C interface, address 0x39
• Wide supply voltage range: 1.8V – 5.5V
• Board dimensions: 1.18" x 0.55"
• Two Mounting holes for 4-40 sized screws
• Connections are spaced for 0.1” pin header
• PCB design similar to Sharp proximity sensor layout
• Designed, manufactured, tested and shipped from the USA
