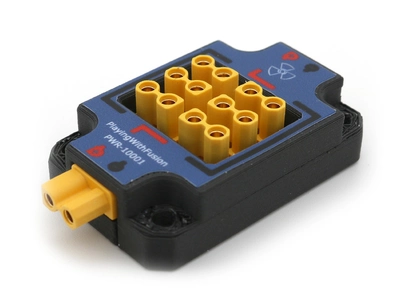

XT30 Power Distribution Module - Wide RoHS

Power is an essential aspect of any electrical system. Playing With Fusion’s XT30 power distribution board makes sharing that power easy.

Standardized Components: Built with a widespread connector, the XT30 is the ideal way to route power throughout your build.

Functional Design: All aspects of the XT30 power distribution board were designed with users in mind. A mounting footprint of 1.5” by 0.875” reduces installation difficulty. The small footprint fits anywhere it is needed. With 6 output channels, the rats' nest of wires will disappear. If more channels are needed, multiple boards can be daisy-chained together.

Extensive Testing: To ensure you are getting the best possible product, Playing With Fusion has thoroughly tested the design to conditions beyond what is required by the FIRST rulebook.

Features

• x1 XT30 input
• x7 XT30 outputs
  • 6 standard outputs
  • 1 daisy-chain output
• Max input current: 30A continuous
• Max total output current: 30A continuous
• Inter-board daisy-chain connectivity
• Clear identification of wire polarity to prevent errors
• Small form factor
• Mounting Dimensions: 1.5” x 0.875”
• Designed, manufactured, tested, and shipped from the USA

Applications

• Robotic competitions (FRC, FTC, VEX, etc.)
• RC projects (cars, trucks, boats, etc.)
• Other hobby projects
