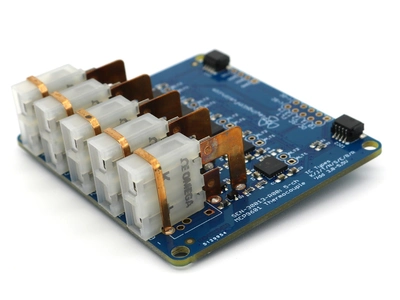

5-Channel T-Type Thermocouple Digital I2C MCP9601 Breakout RoHS

5-channel breakout board for the MCP9601 universal digital thermocouple interface IC. Available with push-in (Weidmuller) and mini thermocouple type specific connectors. Each MCP9601 includes cold junction compensation, a high resolution 18-bit ADC, and integrated nonlinear correction tables in a convenient I2C interface. Wide supply voltage range to allow interfacing with 3.3V and 5V microcontrollers (all Arduinos, Raspberry PI, etc) without sacrificing device performance in any operating condition.

This board is interfaced with a 0.1" pin header or Qwiic compatible connectors. Open and short circuit fault outputs are borken out in addition to power and I2C lines. Includes four mounting holes for standoffs and 4-40 screws.

Features

• MCP9601 universal type thermocouple-to-digital converter
• Measures full range for B, E, J, K, N, R, S and T thermocouple types
• Qwiic compatible I2C interface
• Supply voltage range: 3.0V - 5.5V
• All Arduino, RPi and PIC devices supported
• Detects shorts to GND or Vcc
• Detects open thermocouple
• Volume pricing and custom assembly available. Contact Customer Service to place a custom order.
• 4-40 sized holes for easy board mounting
• Designed, manufactured, tested and shipped from the USA

Applications

• Automotive data acquisition (exhaust, coolant, brakes, etc)
• Industrial instrumentation
• Oven temperature measurements and control
• Home brew setups
• Other hobby projects
